Miter Cutting Saw Machine

$1,680.00 ~~$1,980.00~~

Shipping calculated at checkout.

Portable 45 degree miter cutting saw machine with rail guide can offer a versatile 45 degree mitered cutting or 90 degree vertical cutting on large format porcelain tile, porcelain ceramic tile, granite, marble and engineered stone.

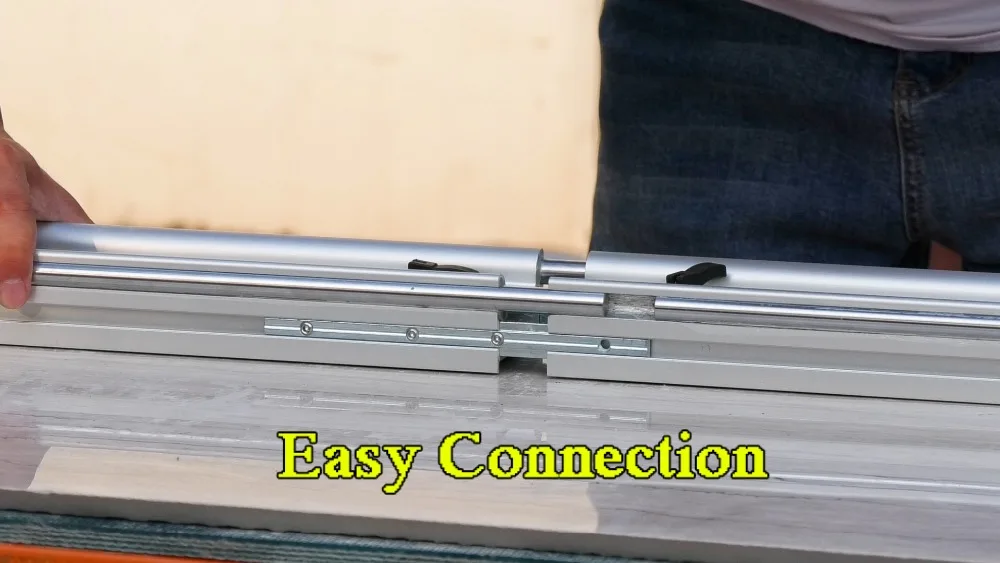

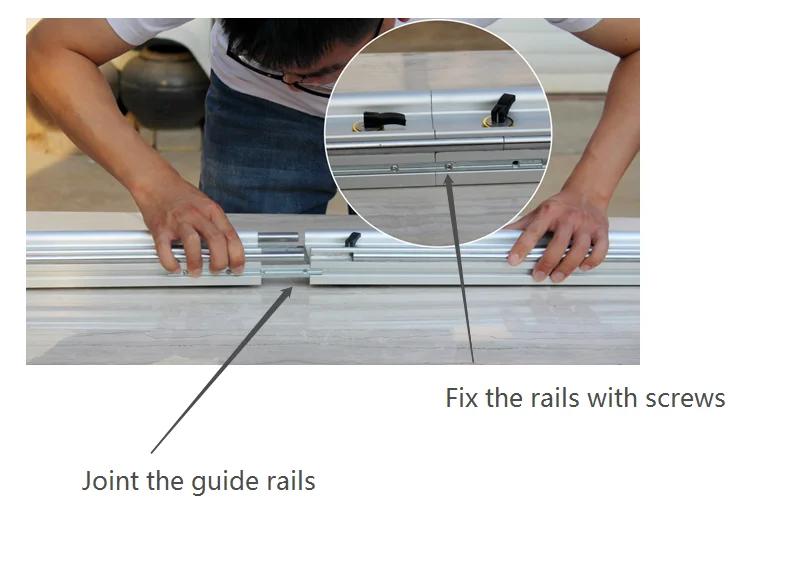

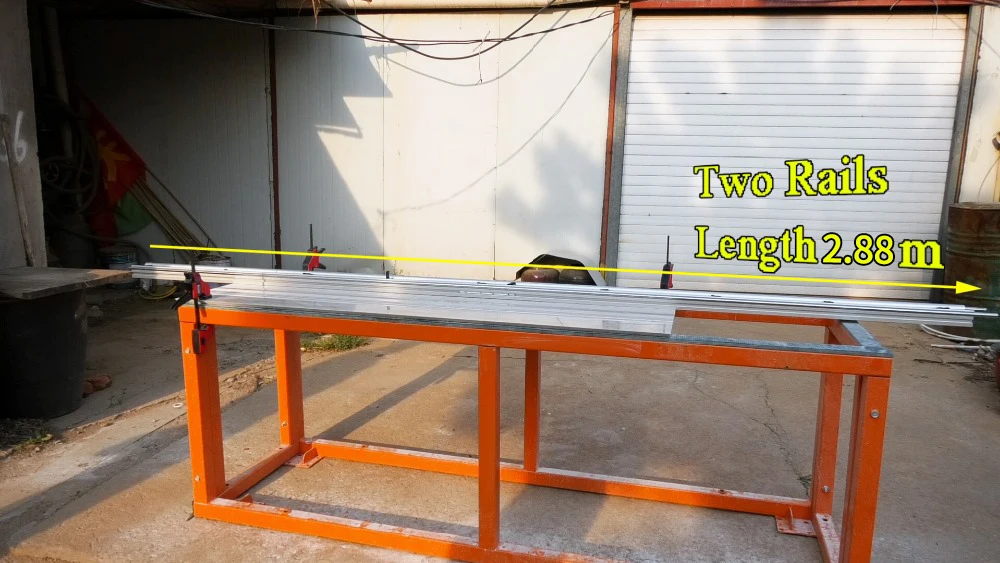

It is a great choice of stone granite fabricators or tile installers whether you work in the fabrication workshop or do the processing on the spot. One rail guide is 1350mm long per rail. And it can be extended to 4.05m (159.4 inch) with 3 rails splicing.

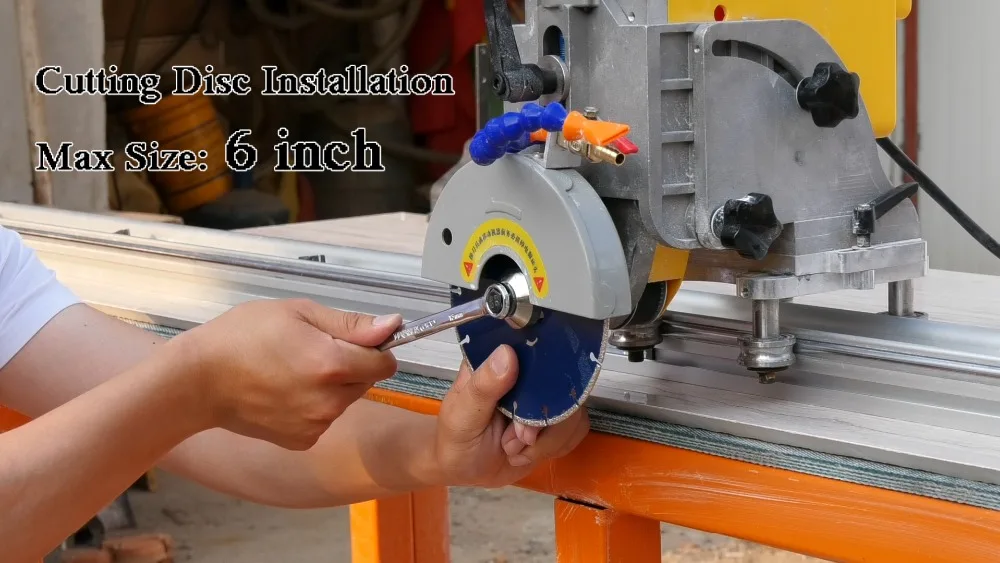

You can use maximum 6 inch/150mm diamond saw cutting blade.

It is engineered with 1 powerful 1800W motor which can bring more power than normal hand-held stone cutter.

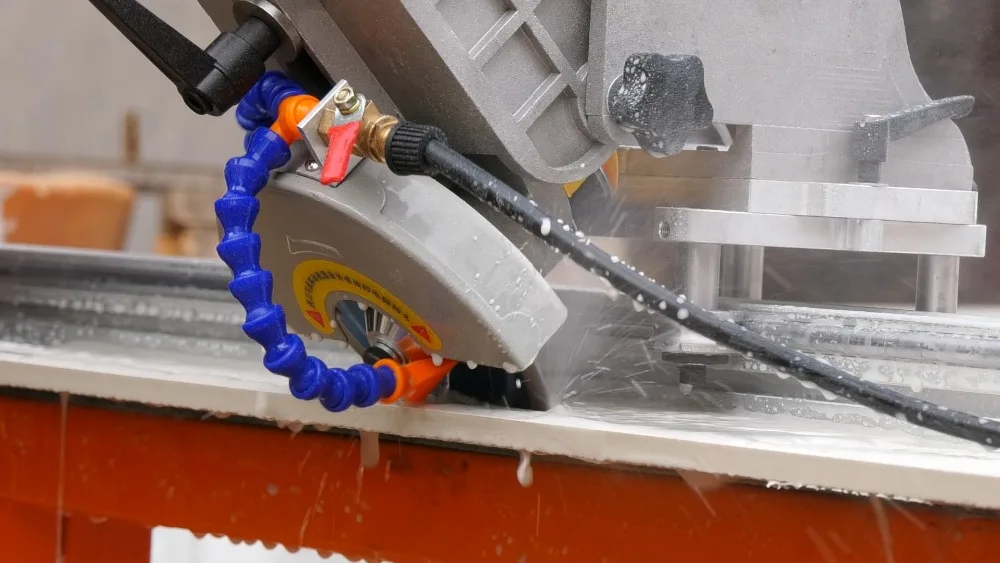

Raizi Tool makes this portable 45 degree miter cutting saw machine with rail guide for high demand on the market. With proper operation and the right choice of the diamond cutting blade, you can get a smooth cut finish with minimum chipping on granite, marble, quartz, engineered stone, and large format porcelain tile.

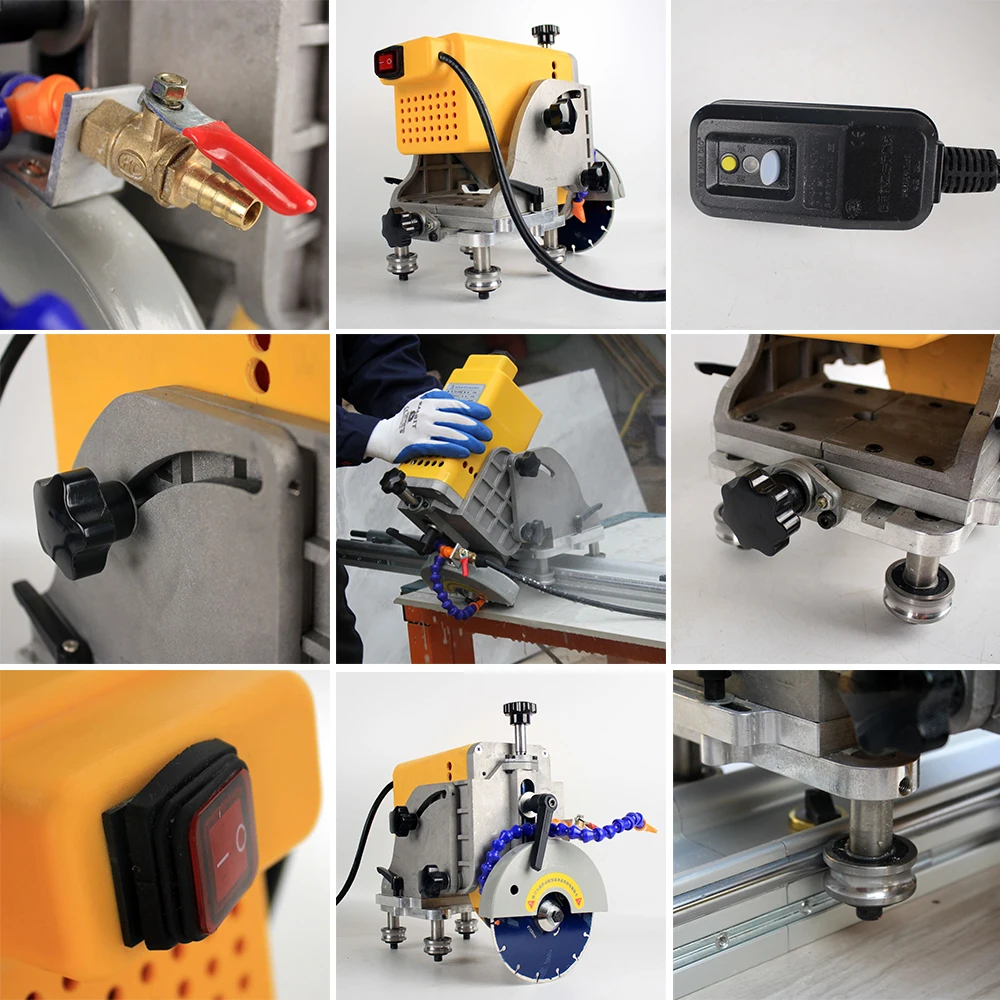

Advantages:

·1800W powerful single phase motor

· 8000 rpm single speed

· Rail guide length per rail: 1440mm

· Diamond saw blade: 5 inch- 6 inch

· Adjustable cutting depth up to 62mm

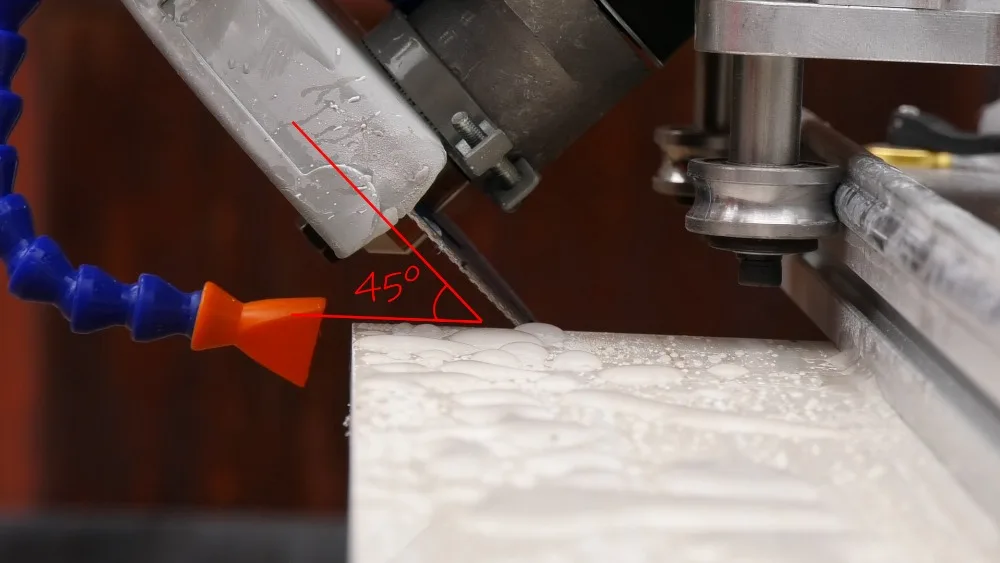

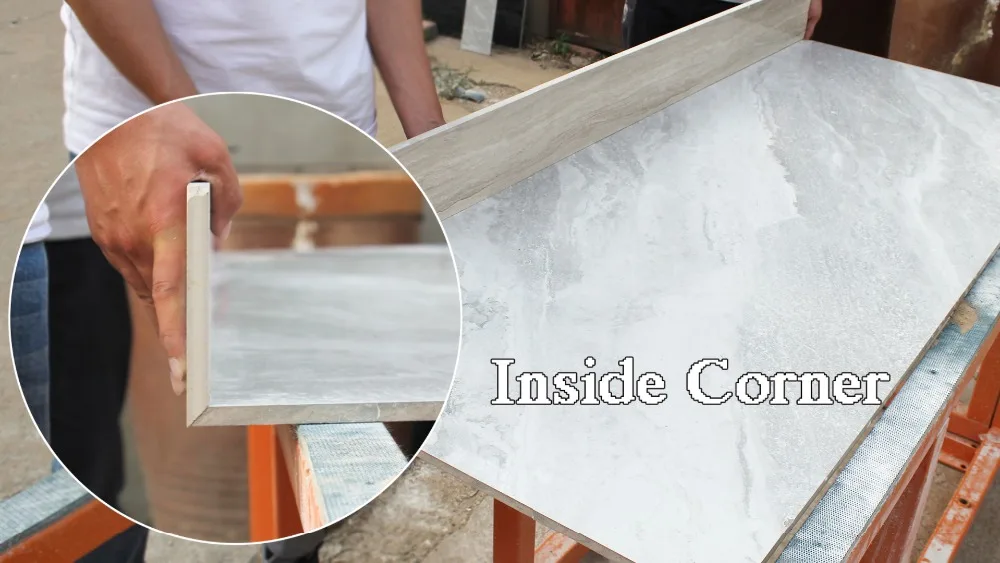

· 45 degree mitered cutting or 90 degree vertical cutting

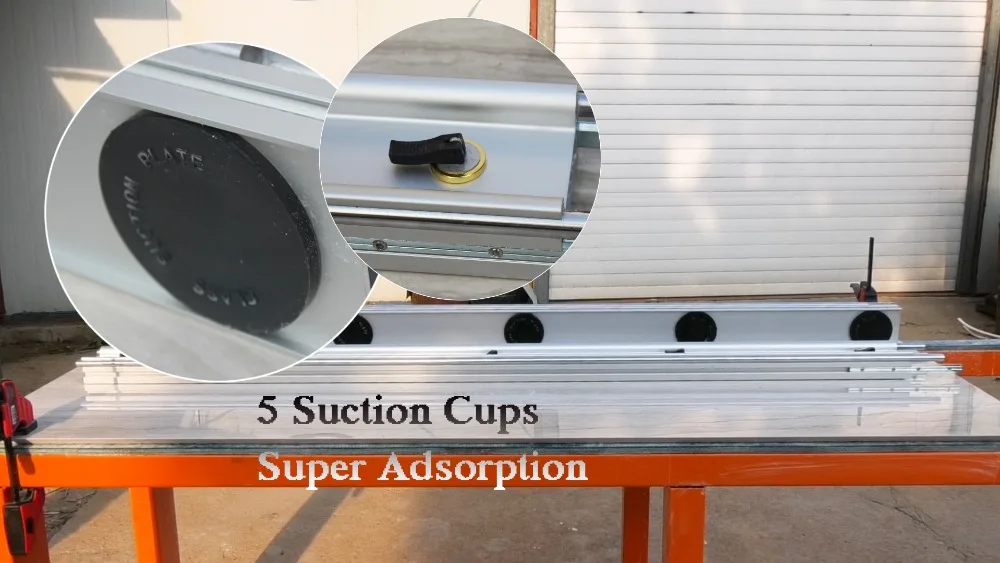

· Built in suction cups to secure frame on top of stone

· GfCI plug ensures safety

· Voltage: 220/110V

Attentionplease!

Wear protective gloves,andcheck the cuttingbladefree from cracksordamagebefore starting to use the machine.

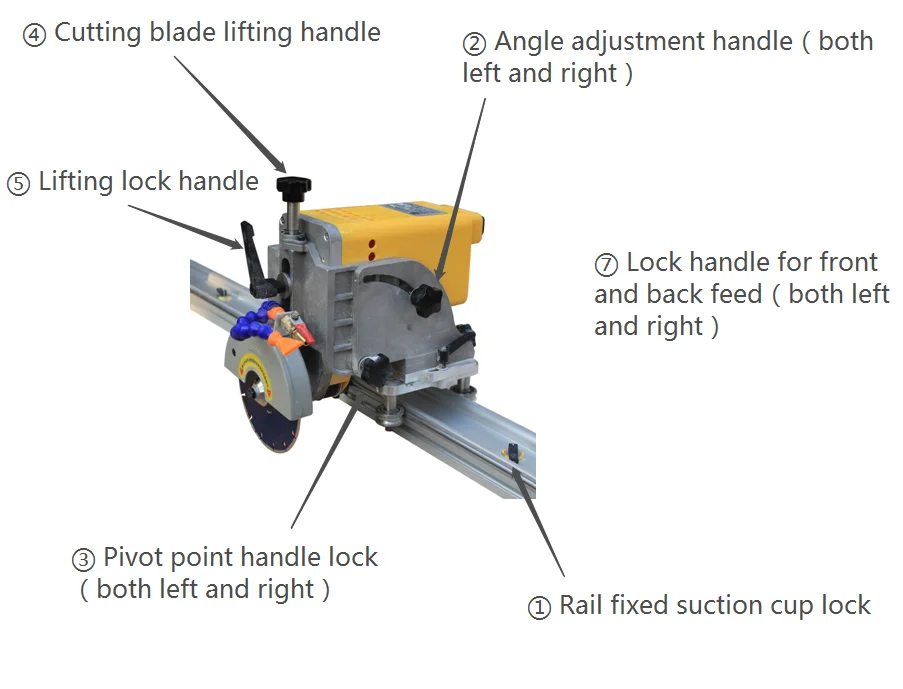

1: Press the suction cup down after adjusting the rail distance and parallel with the rail ①

2: Lock the two handles on the head ②③after adjust the machine to the desired angle (45°/90°)

3: Lock the lifting handle⑤ after adjusting the cutting depth④.

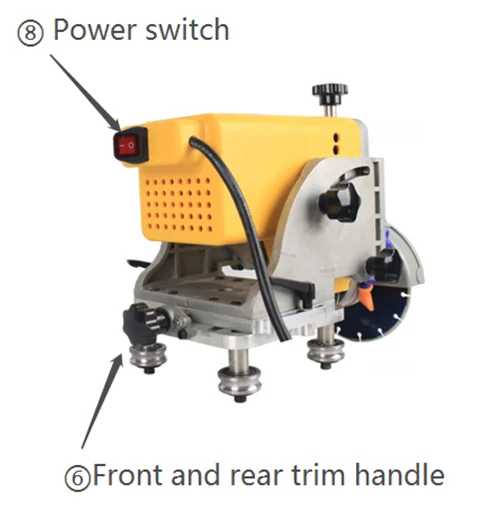

4: Fasten the Fine-tune lock⑦ on both sides after fabricator adjust Fine-tune handle to the desired cutting line⑥

5: Turn on the power switch ⑧ and push at a constant speed until the cutting is finished
